10HP · 500 L

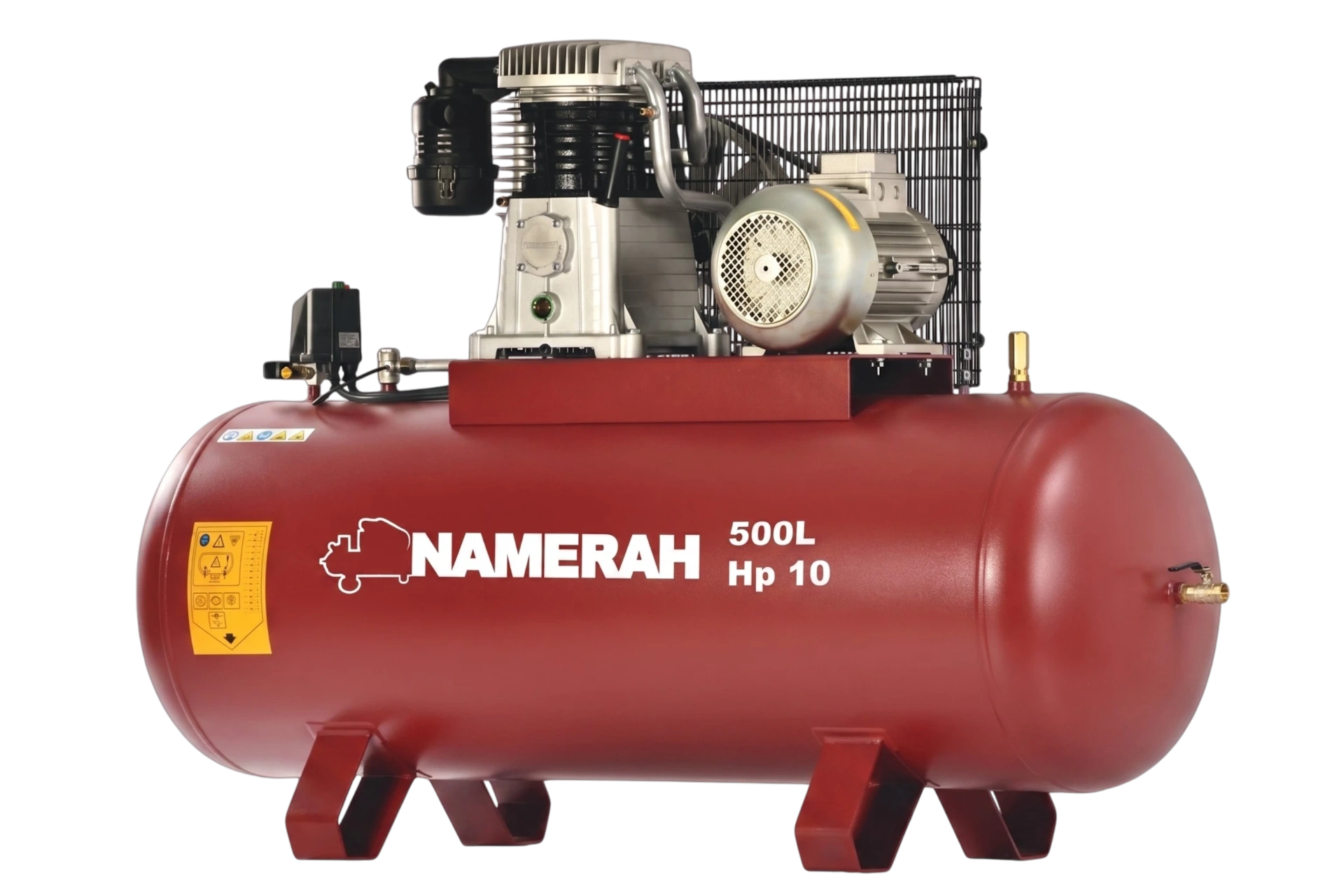

Cast iron Air compressor 500 Lit 10HP 220/400v
Cast-iron 10HP belt-driven piston compressor, 500 L tank, 220/400v — industrial demand.
Power
10HP
Tank
500 L
Pressure
11 bar
Drive
Belt
Features
Belt-driven piston compressor for heavy-duty service
- ●High performance at low running speeds
- ●Reduced vibrations, lower noise level
- ●Oil level inspection glass
- ●Synthetic oil for improved lubrication of moving parts
- ●Balanced sizing of pump, motor and tank
- ●Powder painting for lasting wear resistance
Technical data
N500/B7000/10 HP
Model from the official Namerah catalogue — part number 655697477.
| Specification | Value |
|---|---|
| Model | N500/B7000/10 HP |
| Part number | 655697477 |
| Tank capacity | 500 L |
| Config. | Wheels (C) |
| Air displacement | 1210 l/min |
| Lubrication | Lubricated |
| Pump | B7000 |
| Power | 10 HP / 7.5 kW |
| Speed | 1100 rpm |
| Volts / Phase / Hz | 400/3/60-50 |
| Max pressure | 11 bar |
| Dimensions (LxWxH) | 2030×680×1310 mm |
| Weight | 248 kg |
