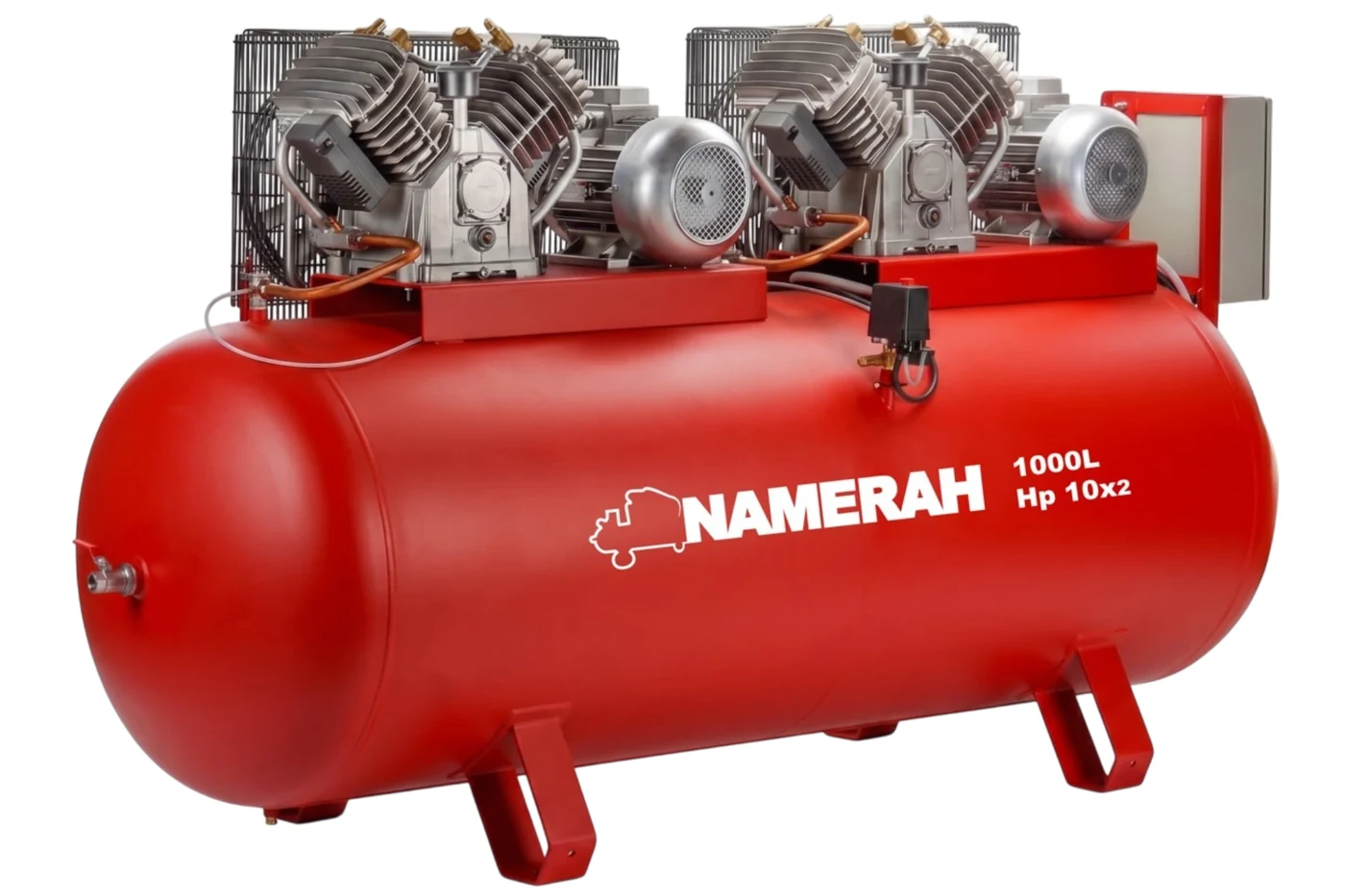

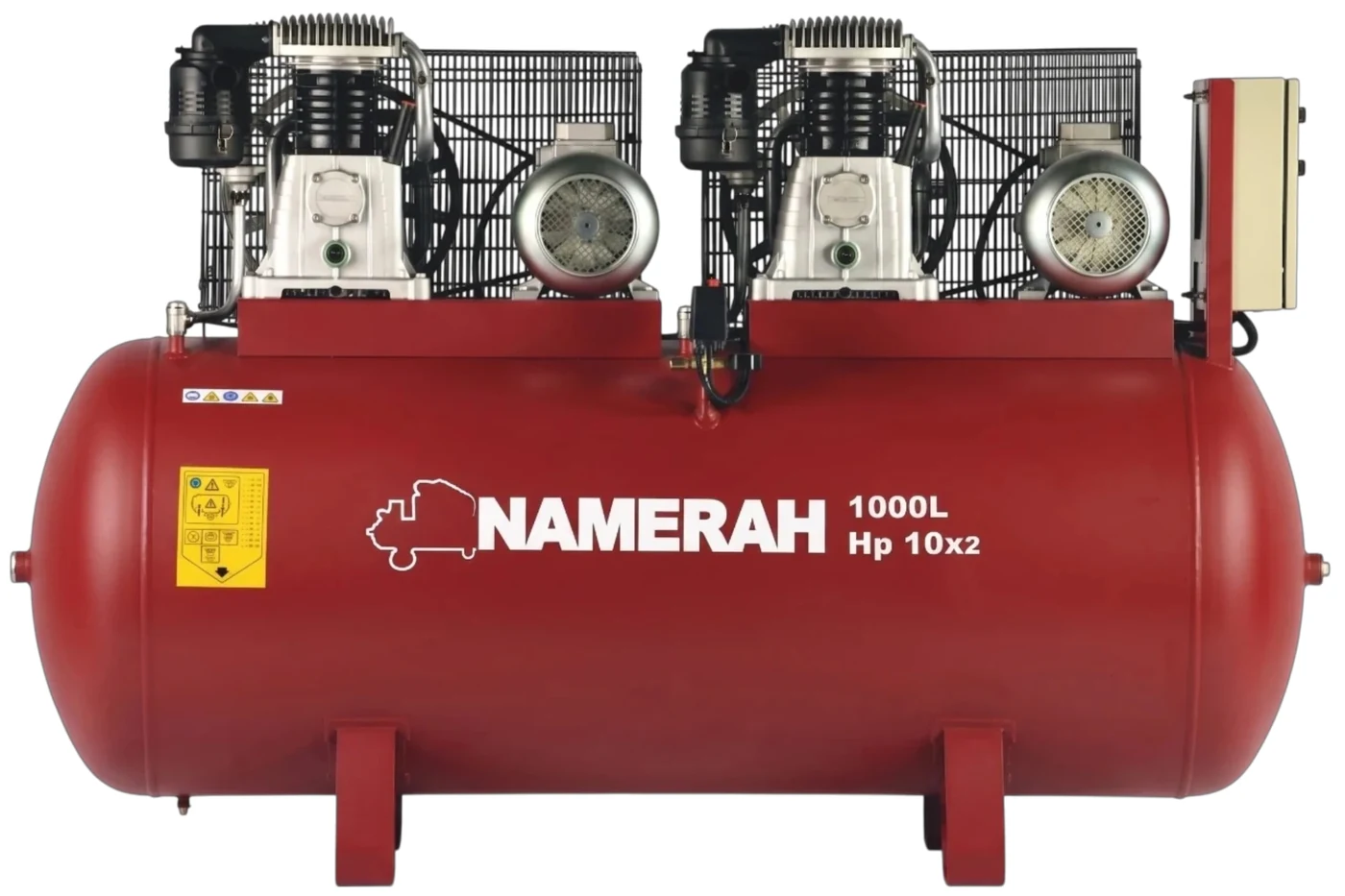

10HP × 2 (20HP) · 1000 L
20HP Air compressor 1000 Lit two stages
Belt-driven, two-stage 10HP×2, 1000 L tank — for high-demand industrial use.
Power
10HP × 2 (20HP)
Tank
1000 L
Pressure
10 bar
Drive
Belt
Features
Belt-driven piston compressor for heavy-duty service
- ●High performance at low running speeds
- ●Reduced vibrations, lower noise level
- ●Oil level inspection glass
- ●Synthetic oil for improved lubrication of moving parts
- ●Balanced sizing of pump, motor and tank
- ●Powder painting for lasting wear resistance
Technical data
N1000/B7000/10 D
Model from the official Namerah catalogue — part number 823458767.
| Specification | Value |
|---|---|
| Model | N1000/B7000/10 D |
| Part number | 823458767 |
| Tank capacity | 1000 L |
| Config. | Wheels (C) |
| Air displacement | 2492 l/min |
| Lubrication | Lubricated |
| Pump | B7000 |
| Power | 2 × 10 HP HP / 2 × 7.5 kW |
| Speed | 1100 rpm |
| Volts / Phase / Hz | 400/3/60-50 |
| Max pressure | 10 bar |
| Dimensions (LxWxH) | 2320×900×1580 mm |
| Weight | 431 kg |
