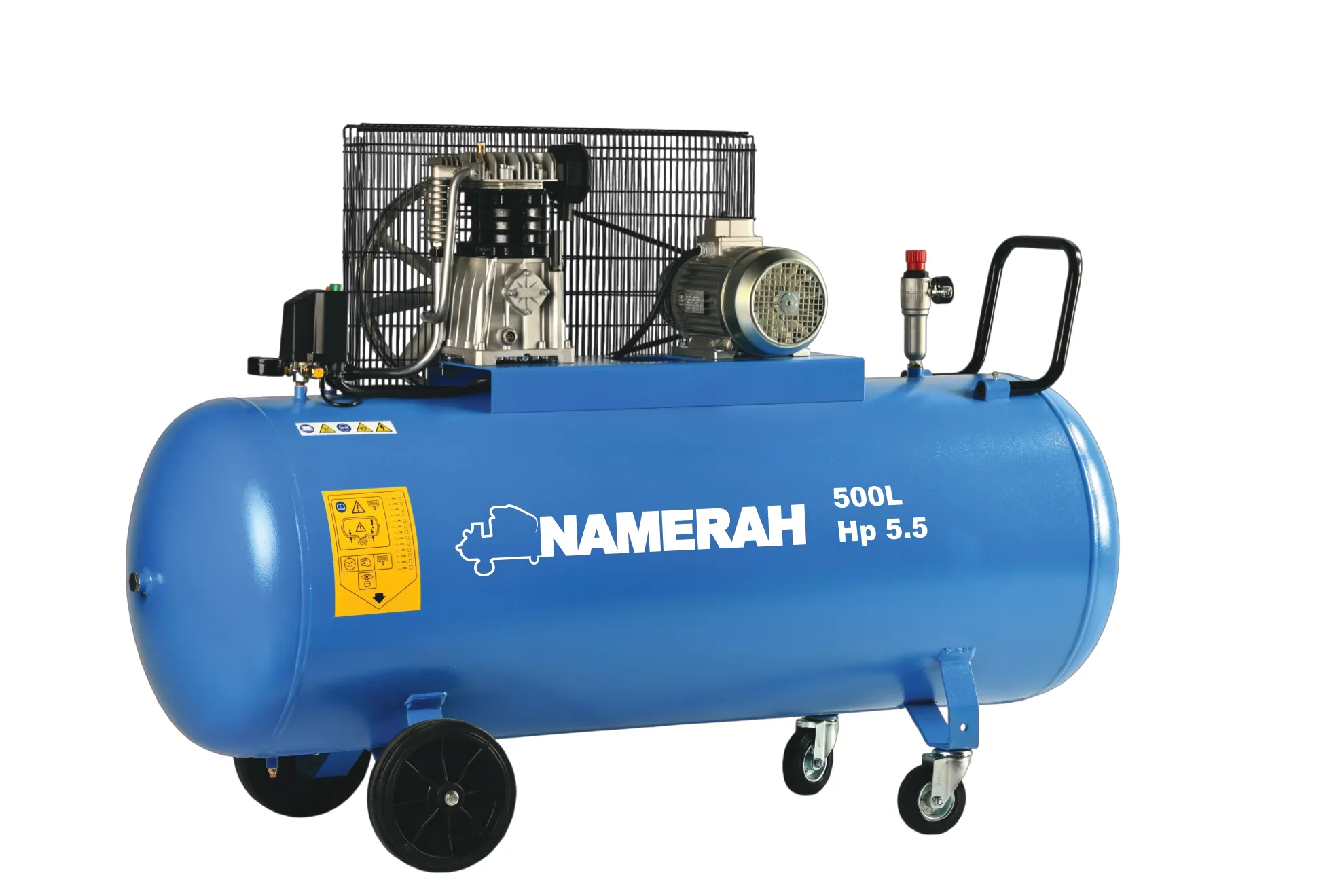

5.5 HP Piston Air Compressor 500 L — ABAC A49B, 10 Bar
5.5 HP two-stage piston air compressor with ABAC A49B pump, 500 L horizontal tank, 600 l/min intake at 10 bar, 400 V three-phase. Request a quote from Namerah.
Belt-driven piston compressor for heavy-duty service
- ●High performance at low running speeds
- ●Reduced vibrations, lower noise level
- ●Oil level inspection glass
- ●Synthetic oil for improved lubrication of moving parts
- ●Balanced sizing of pump, motor and tank
- ●Powder painting for lasting wear resistance
N500/A49B/5.5 HP
Model from the official Namerah catalogue — part number 310509281.
| Specification | Value |
|---|---|
| Model | N500/A49B/5.5 HP |
| Part number | 310509281 |
| Tank capacity | 500 L |
| Config. | Wheels (C) |
| Air displacement | 600 l/min |
| Lubrication | Lubricated |
| Pump | ABAC A49B |
| Power | 5.5 HP / 4 kW |
| Speed | 1400 rpm |
| Volts / Phase / Hz | 400/3/50 |
| Max pressure | 10 bar |
| Dimensions (LxWxH) | 1950×620×1250 mm |
| Weight | 195 kg |
500 litre 5.5HP air compressor
A 500-litre, 5.5HP (4 kW) belt-driven piston air compressor built by Namerah Industrial Co. in Riyadh, Saudi Arabia. The ABAC A49B pump delivers 600 l/min at a maximum working pressure of 10 bar on a three-phase 400/3/50 supply. The 500 L receiver suits tyre and car workshops, spray painting, maintenance lines and light industrial air.
Questions customers ask before ordering
How much does the 500 L 5.5HP air compressor cost?
Pricing is issued as a formal quotation based on quantity and delivery location inside Saudi Arabia. Send your requirement from the contact page or on WhatsApp and we usually reply the same business day with price and lead time.
Is a 500-litre tank the right size for my work?
With 600 l/min on a 500 L receiver it suits production lines, larger workshops and continuous duty. For higher continuous demand we recommend the next power up or a rotary screw compressor.
Is this model single phase or three phase?
This model runs on a three-phase 400/3/50 supply. Other models in a similar tank size are available in the alternative phase — contact us and we will match it to the power available on site.
What is the maximum working pressure?
Maximum pressure is 10 bar, produced by the ABAC A49B pump at 1400 rpm, which covers most air tools and workshop air lines.
Where do you deliver?
We deliver throughout Saudi Arabia and across the Middle East and Africa countries.
