10 HP Piston Air Compressor 500 L — K60 Cast Iron, 10 Bar
Heavy-duty 10 HP two-stage V piston air compressor with 4-cylinder cast-iron Chinook K60 pump, 500 L horizontal tank, 1745 l/min at 10 bar, 400 V three-phase with star-delta starter. Request a quote from Namerah.
Belt-driven piston compressor for heavy-duty service
- ●High performance at low running speeds
- ●Reduced vibrations, lower noise level
- ●Oil level inspection glass
- ●Synthetic oil for improved lubrication of moving parts
- ●Balanced sizing of pump, motor and tank
- ●Powder painting for lasting wear resistance
N500/K60/10 HP
Model from the official Namerah catalogue — part number 5268163221.
| Specification | Value |
|---|---|
| Model | N500/K60/10 HP |
| Part number | 5268163221 |
| Tank capacity | 500 L |
| Config. | Wheels (C) |
| Air displacement | 1745 l/min |
| Lubrication | Lubricated |
| Pump | Chinook K60 |
| Power | 10 HP / 7.5 kW |
| Speed | 1200 rpm |
| Volts / Phase / Hz | 400/3/50-60Hz |
| Max pressure | 10 bar |
| Dimensions (LxWxH) | 2030×680×1310 mm |
| Weight | 320 kg |

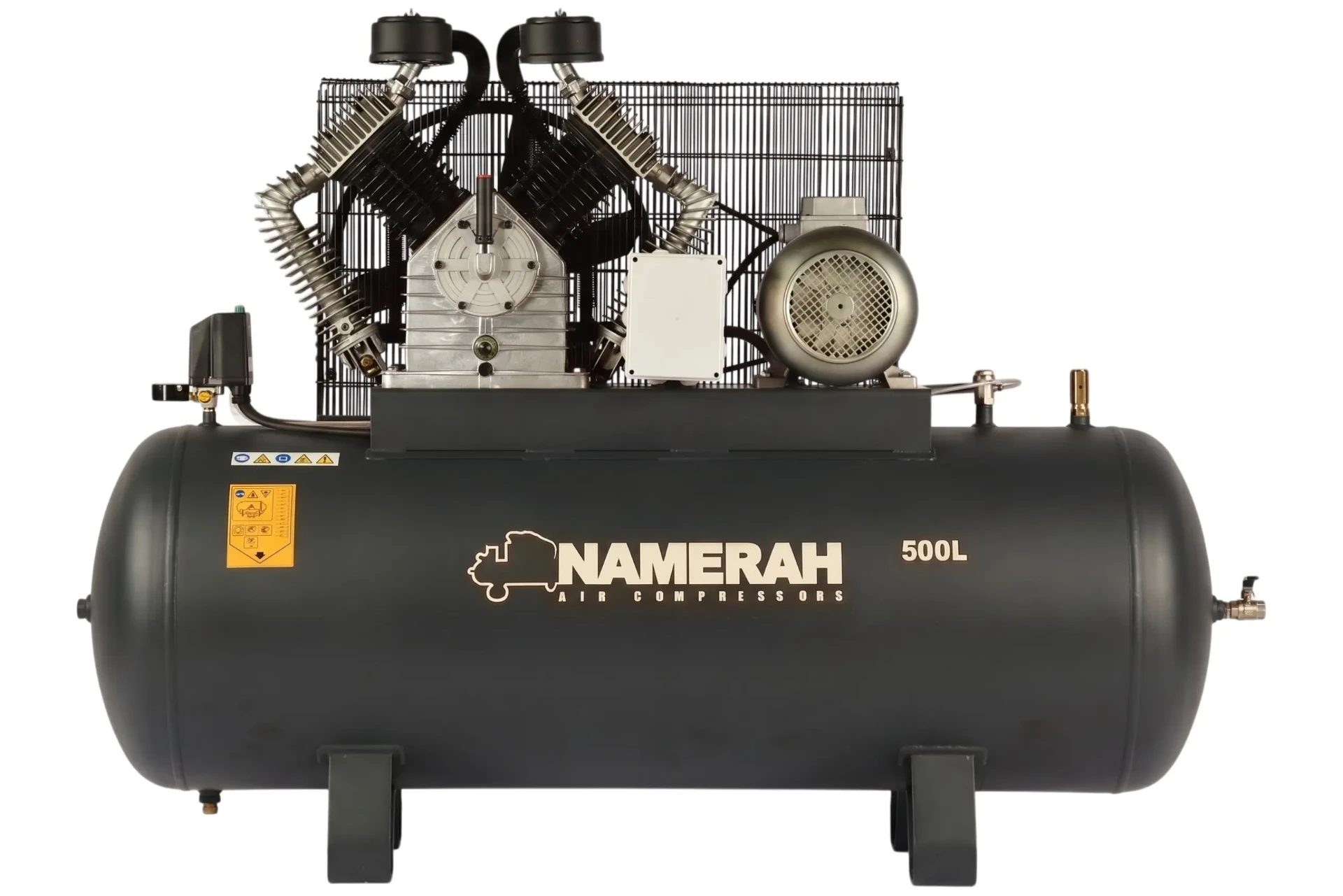

500 litre 10HP air compressor
A 500-litre, 10HP (7.5 kW) belt-driven piston air compressor built by Namerah Industrial Co. in Riyadh, Saudi Arabia. The Chinook K60 pump delivers 1745 l/min at a maximum working pressure of 10 bar on a three-phase 400/3/50-60Hz supply. The 500 L receiver suits tyre and car workshops, spray painting, maintenance lines and light industrial air.
Questions customers ask before ordering
How much does the 500 L 10HP air compressor cost?
Pricing is issued as a formal quotation based on quantity and delivery location inside Saudi Arabia. Send your requirement from the contact page or on WhatsApp and we usually reply the same business day with price and lead time.
Is a 500-litre tank the right size for my work?
With 1745 l/min on a 500 L receiver it suits production lines, larger workshops and continuous duty. For higher continuous demand we recommend the next power up or a rotary screw compressor.
Is this model single phase or three phase?
This model runs on a three-phase 400/3/50-60Hz supply. Other models in a similar tank size are available in the alternative phase — contact us and we will match it to the power available on site.
What is the maximum working pressure?
Maximum pressure is 10 bar, produced by the Chinook K60 pump at 1200 rpm, which covers most air tools and workshop air lines.
Where do you deliver?
We deliver throughout Saudi Arabia and across the Middle East and Africa countries.
